EstateMate Developer Guide

---

Acknowledgements

• The toDisplayValue method in the LeaseAmount class was adapted from this StackOverflow answer to format currency using commas for every thousand digit.

---

Setting up, getting started

Refer to the guide Setting up and getting started.

---

Design

Architecture

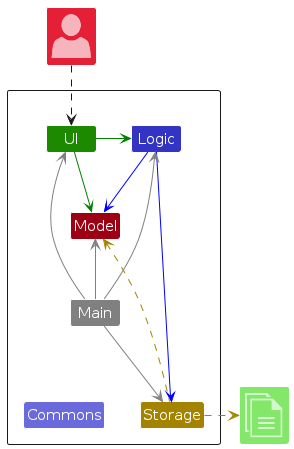

The Architecture Diagram given above explains the high-level design of the App.

Given below is a quick overview of main components and how they interact with each other.

Main components of the architecture

Main (consisting of classes Main and MainApp) is in charge of the app launch and shut down.

• At app launch, it initializes the other components in the correct sequence, and connects them up with each other.
• At shut down, it shuts down the other components and invokes cleanup methods where necessary.

The bulk of the app's work is done by the following four components:

• UI: The UI of the App.
• Logic: The command executor.
• Model: Holds the data of the App in memory.
• Storage: Reads data from, and writes data to, the hard disk.

Commons represents a collection of classes used by multiple other components.

How the architecture components interact with each other

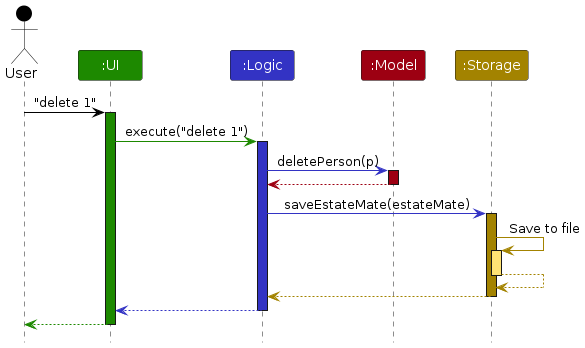

The Sequence Diagram below shows how the components interact with each other for the scenario where the user issues the command delete 1.

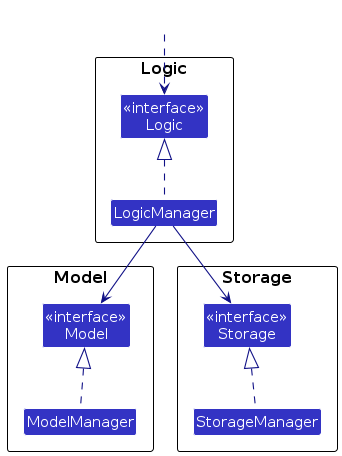

Each of the four main components (also shown in the diagram above),

• defines its API in an interface with the same name as the Component.
• implements its functionality using a concrete {Component Name}Manager class (which follows the corresponding API interface mentioned in the previous point.

For example, the Logic component defines its API in the Logic.java interface and implements its functionality using the LogicManager.java class which follows the Logic interface. Other components interact with a given component through its interface rather than the concrete class (reason: to prevent outside component's being coupled to the implementation of a component), as illustrated in the (partial) class diagram below.

The sections below give more details of each component.

UI component

The API of this component is specified in Ui.java

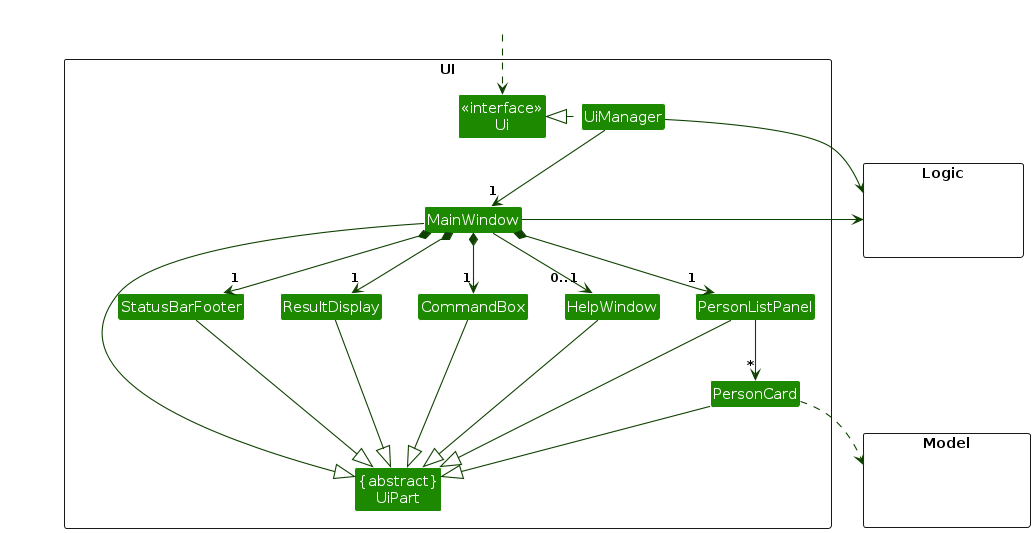

The UI consists of a MainWindow that is made up of parts e.g.CommandBox, ResultDisplay, TenantListPanel, StatusBarFooter etc. All these, including the MainWindow, inherit from the abstract UiPart class which captures the commonalities between classes that represent parts of the visible GUI.

The UI component uses the JavaFx UI framework. The layout of these UI parts are defined in matching .fxml files that are in the src/main/resources/view folder. For example, the layout of the MainWindow is specified in MainWindow.fxml

The UI component,

• executes user commands using the Logic component.
• listens for changes to Model data so that the UI can be updated with the modified data.
• keeps a reference to the Logic component, because the UI relies on the Logic to execute commands.
• depends on some classes in the Model component, as it displays Person object residing in the Model.

Logic component

API : Logic.java

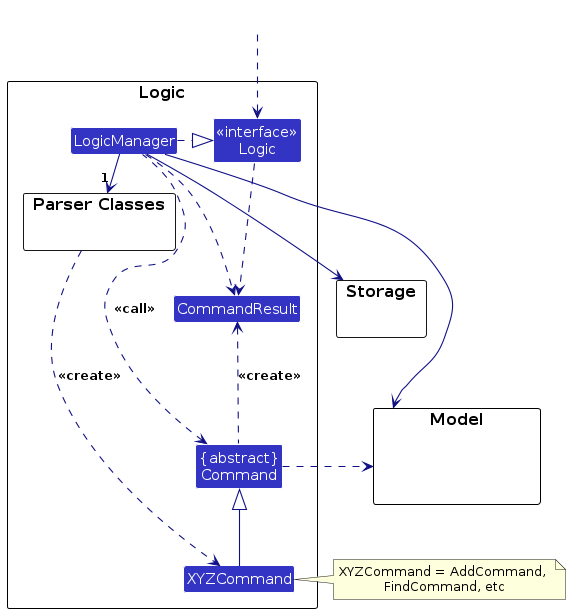

Here's a (partial) class diagram of the Logic component:

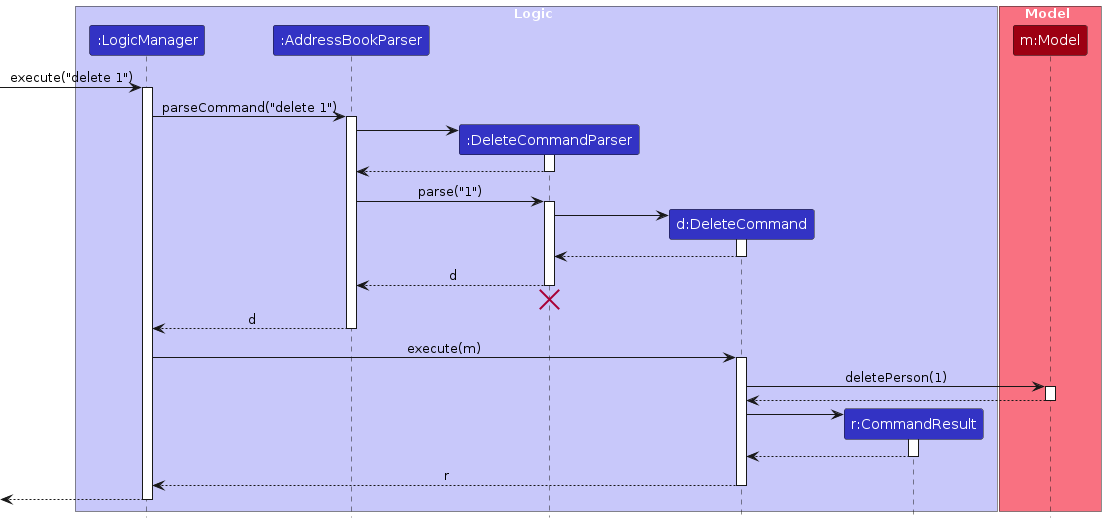

The sequence diagram below illustrates the interactions within the Logic component, taking execute("delete 1") API call as an example.

How the Logic component works:

1. When Logic is called upon to execute a command, it is passed to an EstateMateParser object which in turn creates a parser that matches the command (e.g., DeleteTenantCommandParser or AddJobCommandParser) and uses it to parse the command.
2. This results in a Command object (more precisely, an object of one of its subclasses e.g., DeleteTenantCommand) which is executed by the LogicManager.
3. The command can communicate with the Model when it is executed (e.g. to delete a tenant or add a job).
   Note that although this is shown as a single step in the diagram above (for simplicity), in the code it can take several interactions (between the command object and the Model) to achieve.
4. The result of the command execution is encapsulated as a CommandResult object which is returned back from Logic.

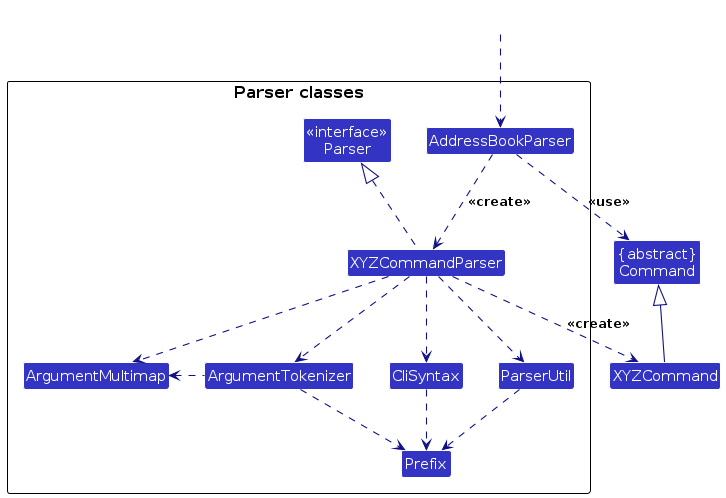

Here are the other classes in Logic (omitted from the class diagram above) that are used for parsing a user command:

How the parsing works:

• When called upon to parse a user command, the EstateMateParser class creates an XYZCommandParser (XYZ is a placeholder for the specific command name e.g., AddTenantCommandParser) which uses the other classes shown above to parse the user command and create a XYZCommand object (e.g., AddTenantCommand) which the EstateMateParser returns back as a Command object.
• All XYZCommandParser classes (e.g., AddTenantCommandParser, DeleteTenantCommandParser, ...) inherit from the Parser interface so that they can be treated similarly where possible e.g, during testing.

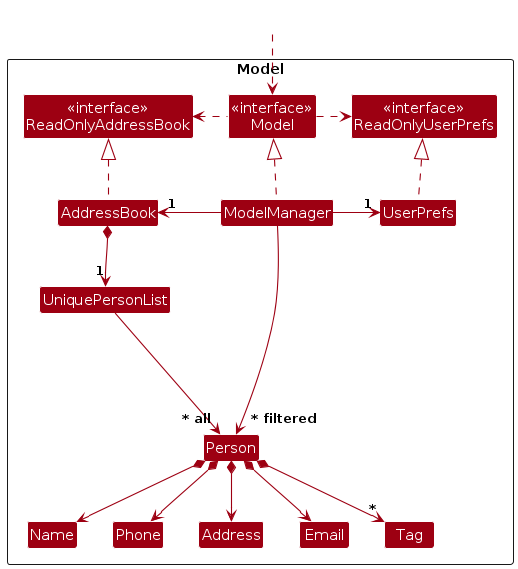

Model component

API : Model.java

The Model component,

• stores the EstateMate data i.e., all Person objects (which are contained in a UniquePersonList object).
• stores the currently 'selected' Person objects (e.g., results of a search query) as a separate filtered list which is exposed to outsiders as an unmodifiable ObservableList<Person> that can be 'observed' e.g. the UI can be bound to this list so that the UI automatically updates when the data in the list change.
• stores a UserPref object that represents the user’s preferences. This is exposed to the outside as a ReadOnlyUserPref objects.
• does not depend on any of the other three components (as the Model represents data entities of the domain, they should make sense on their own without depending on other components)

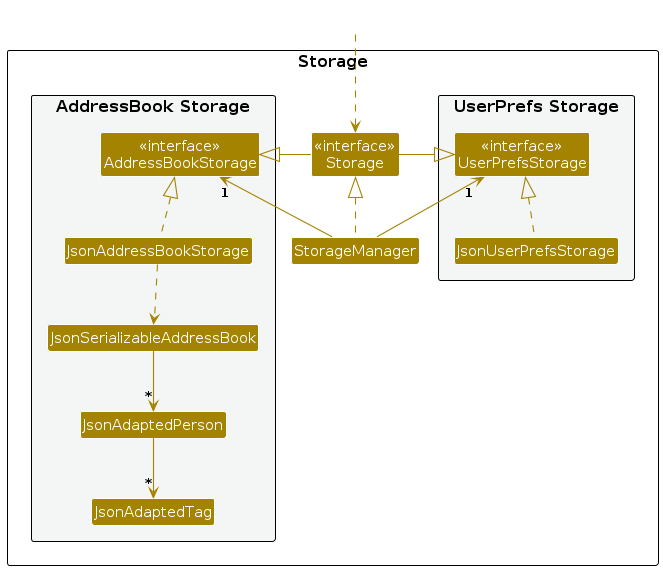

Storage component

API : Storage.java

The Storage component,

• can save both EstateMate data and user preference data in JSON format, and read them back into corresponding objects.
• inherits from both EstateMateStorage and UserPrefStorage, which means it can be treated as either one (if only the functionality of only one is needed).
• depends on some classes in the Model component (because the Storage component's job is to save/retrieve objects that belong to the Model)

Common classes

Classes used by multiple components are in the seedu.estatemate.commons package.

---

Implementation

This section describes some noteworthy details on how certain features are implemented.

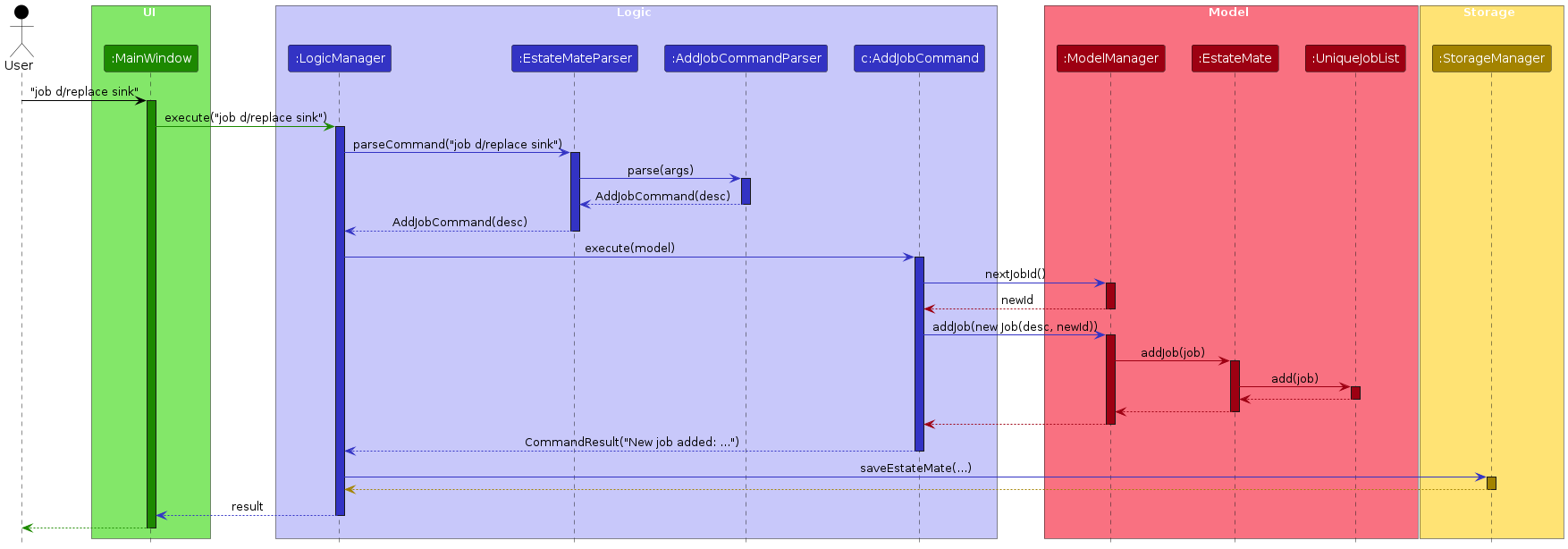

Job feature

Implementation Overview

This section explains how Jobs are modelled, parsed, stored, and presented.

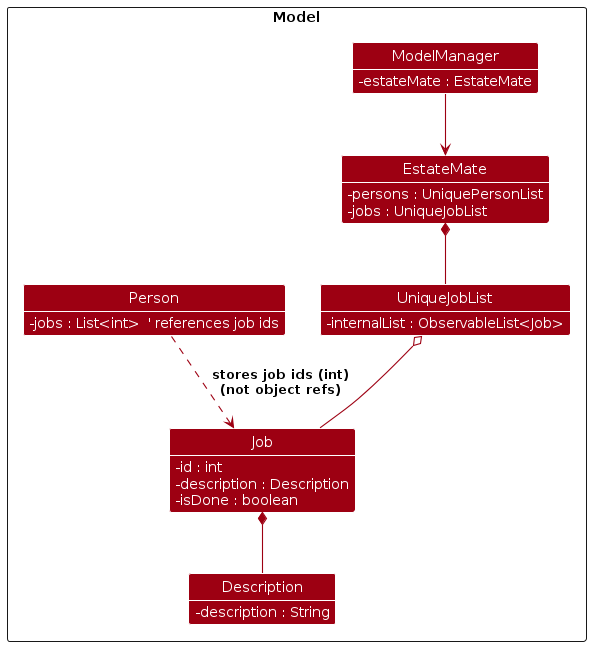

Model

Core Types

• Job fields: id:int, description:Description, isDone:boolean.
• Description validates non-blank descriptions.
• UniqueJobList maintains all jobs; provides add/remove/mark/unmark and an unmodifiable observable view.

Tenant References

• Person keeps List<Integer> jobs (job ids).
• Deleting a job cascades: the job is removed and its id is stripped from all persons’ jobs lists.

Logic

Commands

• AddJobCommand (job d/<desc>) parses Description, allocates id via Model#nextJobId(), adds job.
• EditJobCommand (ejob <id> d/<desc>) updates job description for the given id; preserves isDone.
• DeleteJobCommand (djob <id>) removes job and triggers cascade unlink from tenants.
• MarkJobCommand / UnmarkJobCommand (mark <id> / unmark <id>) toggles completion.
• FindJobCommand (fjob KEYWORDS…) filters by case-insensitive keywords with JobContainsKeywordsPredicate.

Parsers

• AddJobCommandParser, EditJobCommandParser, DeleteJobCommandParser, MarkJobCommandParser, UnmarkJobCommandParser, FindJobCommandParser tokenize arguments, validate fields, and construct commands.

Post-mutation behaviour

• After job-list-changing mutations (job / ejob / djob), ModelManager resets the job filter to PREDICATE_SHOW_ALL_JOBS. Mark/unmark just update the job’s status and keep the current filter.

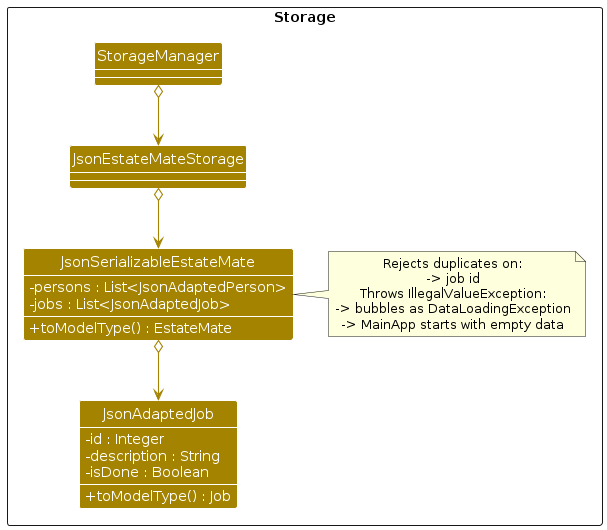

Storage

JSON Mapping

• JsonAdaptedJob <-> Job with fields
  { "id": number (>0), "description": string, "isDone": boolean }.
• JsonSerializableEstateMate rejects duplicates by id. Jobs with the same description are allowed and will all be loaded. Load errors surface as DataLoadingException; the app then starts with an empty dataset (AB-3 fallback path).

Save Flow

• After a successful command, LogicManager persists via StorageManager#saveEstateMate(...).

UI

Lists & Cards

• JobListPanel renders the ObservableList<Job>.
• Each JobCard shows id, description, and a completion badge derived from isDone.
• The list updates automatically when ModelManager's filteredJobs changes.

---

Design Notes

• Safe startup: duplicate jobs in storage (by id) cause load to fail; the app falls back to empty data.
• Consistency: job deletion removes any references from tenants (by id) to keep the model coherent.

---

Documentation, logging, testing, configuration, dev-ops

• Documentation guide
• Testing guide
• Logging guide
• Configuration guide
• DevOps guide

---

Appendix: Requirements

Product scope

Target user profile:

• Property managers and property management companies managing multiple rental units.
• Needs to track and update tenant details efficiently (contact info, lease, rent, maintenance jobs).
• Needs a reliable system to manage both tenants and property maintenance.
• Prefers a fast, keyboard-driven desktop application.
• Comfortable with structured data entry and managing records through commands.

Value proposition: EstateMate helps property managers stay organized and in control of their operations. It provides a centralized and efficient way to manage tenants, rental records, and maintenance jobs all from a simple, keyboard-friendly interface. With EstateMate, users can:

• Maintain accurate and organised tenant records
• Monitor rental payments and lease durations
• Track maintenance jobs and their completion status
• Improve operational efficiency through a command-driven interface

User Stories

Priorities: High (must have) - * * *, Medium (nice to have) - * *, Low (unlikely to have) - *

Use Cases

(For all use cases below, the System is the 'TenantManager' and the Actor is the 'user', unless specified otherwise)

---

Use case: UC01 - Add a tenant

MSS

1. User requests to add a tenant with all required information.
2. System checks for correct parameter format and completeness.
3. System verifies that a tenant with the same name does not already exist.
4. System creates a new tenant record.
5. System shows the success message and refreshes the tenants list automatically.

Use case ends.

Extensions

• 2a. The command format is wrong (e.g., missing parameter, wrong date format).
  • 2a1. System shows an error message and provides the correct input format.
    Use case ends.
• 3a. A tenant with the same name already exists.
  • 3a1. System shows an error message indicating that the tenant already exists.
    Use case ends.

---

Use case: UC02 - Delete a tenant

MSS

1. User requests to delete a specific tenant.
2. System verifies that the request is valid and corresponds to an existing tenant.
3. System removes the specified tenant.
4. System shows the success message and refreshes the list of tenants automatically.

Use case ends.

Extensions

• 2a. The given tenant number is invalid.
  • 2a1. System shows an error message that the provided tenant number is invalid and provides the correct input format.
    Use case ends.
• 2b. The given tenant number does not correspond to any existing tenant.
  • 2b1. System shows an error message indicating that the tenant does not exist.
    Use case ends.

---

Use case: UC03 - List all tenants

MSS

1. User requests to view all tenant information.
2. System displays the full list of tenants, including all details for each tenant.

Use case ends.

Extensions

• 1a. The command format is wrong (e.g., wrong spelling).
  • 1a1. System shows an error message indicating that the command format is invalid.
    Use case ends.

---

Use case: UC04 - Add a maintenance job

MSS

1. User requests to add a maintenance job, with provided job description.
2. System verifies that description is provided and not empty.
3. System creates a new maintenance job and sets default status in the job list.
4. System shows the success message and refreshes the job list display to include the newly added job.

Use case ends.

Extensions

• 2a. The given job description is missing or empty.
  • 2a1. System shows an error message indicating that the description cannot be empty.
    Use case ends.

---

Use case: UC05 - Delete a maintenance job

MSS

1. User requests to delete a maintenance job.
2. System verifies that the request is valid and corresponds to an existing job.
3. System deletes the specified maintenance job.
4. System shows the success message and refreshes the job list to reflect the removal.

Use case ends.

Extensions

• 2a. The given input is invalid (e.g., empty, not positive integer).
  • 2a1. System shows an error message that the provided input is invalid and provides the correct input format.
    Use case ends.
• 2b. The given input does not correspond to any existing job.
  • 2b1. System shows an error message indicating that the job does not exist.
    Use case ends.

---

Use case: UC06 - List all maintenance jobs

MSS

1. User requests to view all maintenance jobs.
2. System displays the full list of maintenance jobs, including the completion status of each job.

Use case ends.

Extensions

• 1a. The command format is wrong (e.g., wrong spelling).
  • 1a1. System shows an error message indicating that the command format is invalid.
    Use case ends.

---

Use case: UC07 - Mark maintenance job

MSS

1. User requests to mark a maintenance job as completed.
2. System verifies that the request is valid and corresponds to an existing unmarked job.
3. System sets the status of the maintenance job.
4. System shows the success message and refreshes the maintenance job list display to reflect the new status.

Use case ends.

Extensions

• 2a. The given input is invalid (e.g., empty, not positive integer).
  • 2a1. System shows an error message that the provided input is invalid and provides the correct input format.
    Use case ends.
• 2b. The given input does not correspond to any existing job in the job list
  • 2b1. System shows an error message indicating that the job does not exist.
    Use case ends.
• 2c. The job is already marked as completed.
  • 2c1. System shows a message indicating that the job is already completed.
    Use case ends.

---

Use case: UC08 - Unmark maintenance job

MSS

1. User requests to revert a maintenance job as not completed.
2. System verifies that the request is valid and corresponds to an existing marked job.
3. System sets the status of the maintenance job accordingly in the job list in any linked tenant's job list.
4. System shows the success message and refreshes the maintenance job list display to reflect the new status.

Use case ends.

Extensions

• 2a. The given input is invalid (e.g., empty, not positive integer).
  • 2a1. System shows an error message that the provided input is invalid and provides the correct input format.
    Use case ends.
• 2b. The given input does not correspond to any existing job in the job list.
  • 2b1. System shows an error message indicating that the job does not exist.
    Use case ends.
• 2c. The job is already marked as not completed.
  • 2c1. System shows a message indicating that the job is already in pending state.
    Use case ends.

---

Use case: UC09 - Help command

MSS

1. User requests a list of all available commands.
2. System directs user to the user guide.

Use case ends.

Extensions

• 1a. The command format is wrong (e.g., wrong spelling).
  • 1a1. System shows an error message indicating that the command format is invalid.
    Use case ends.

---

Use case: UC10 - Find a tenant

MSS

1. User requests to find a specific tenant.
2. System verifies the entered keyword(s).
3. System retrieves all matching tenant records.
4. System automatically displays the list of matching tenants along with their keywords.

Use case ends.

Extensions

• 2a. The given keyword(s) is invalid (e.g., empty).
  • 2a1. System shows an error message indicating that the provided keyword(s) is invalid.
    Use case ends.
• 3a. No tenants match the search keyword.
  • 3a1. System shows a message indicating that no matching tenants were found.
    Use case ends.

---

Use case: UC11 - Find a maintenance job

MSS

1. User requests to find a maintenance job.
2. System verifies the given keyword(s).
3. System retrieves all matching job records.
4. System automatically displays the list of matching jobs.

Extensions

• 2a. The given keyword(s) is invalid (e.g., empty).
  • 2a1. System shows an error message indicating that the provided keyword(s) is invalid.
    Use case ends.
• 3a. No job matches the search keyword(s).
  • 3a1. System shows a message indicating that no matching jobs were found.
    Use case ends.

---

Use case: UC12 - Edit a tenant

MSS

1. User requests to edit a tenant with one or more updated fields.
2. System verifies that the request is valid and corresponds to an existing tenant.
3. System updates only the specified fields of the tenant's record while keeping other details unchanged.
4. System shows the success message and refreshes the tenant list display to reflect the changes.

Use case ends.

Extensions

• 2a. The given input is invalid (e.g., empty, not positive integer).
  • 2a1. System shows an error message that the provided input is invalid and provides the correct input format.
    Use case ends.
• 2b. The given input does not correspond to any existing tenant in the list.
  • 2b1. System shows an error message indicating that the tenant does not exist.
    Use case ends.
• 2c. The command does not include any field to edit.
  • 2c1. System shows an error message indicating that at least one field must be specified.
    Use case ends.

---

Use case: UC13 - Edit a maintenance job

MSS

1. User requests to edit a maintenance job with updated description.
2. System verifies that the request is valid and corresponds to an existing job.
3. System updates only the maintenance job description.
4. System shows the success message and refreshes the job list display to reflect the changes.

Use case ends.

Extensions

• 2a. The given input is invalid (e.g., empty, not positive integer).
  • 2a1. System shows an error message that the provided input is invalid and provides the correct input format.
    Use case ends.
• 2b. The given input does not correspond to any existing job in the list.
  • 2b1. System shows an error message indicating that the job does not exist.
    Use case ends.
• 2c. The command does not include any description to edit.
  • 2c1. System shows an error message indicating that description cannot be empty.
    Use case ends.

---

Use case: UC14 - Link maintenance job to tenant

MSS

1. User requests to link an existing maintenance job to a tenant.
2. System verifies that the request is valid, corresponds to an existing tenant and maintenance job.
3. System links the specified job to the tenant updating the tenant's assigned job list and maintaining the job status.
4. System shows a success message and refreshes the UI to reflect the linked job under the tenant's assigned jobs.

Use case ends.

Extensions

• 2a. The given input is invalid (e.g., empty fields, not positive integer).
  • 2a1. System shows an error message that the provided input is invalid and provides the correct input format.
    Use case ends.
• 2b. The given tenant number does not correspond to any existing tenant.
  • 2b1. System shows an error message indicating that the tenant does not exist.
    Use case ends.
• 2c. The given input does not correspond to any existing job.
  • 2c1. System shows an error message indicating that the job does not exist.
    Use case ends.
• 2d. The job is already linked to tenant.
  • 2d1. System shows a message indicating that the job is already assigned to the tenant.
    Use case ends.

---

Use case: UC15 - Clear

MSS

1. User removes all tenant contacts in the database.
2. EstateMate clears the database and updates local JSON file.

Use case ends.

---

Use case: UC16 - Exit

MSS

1. User wants to exit the application.
2. EstateMate is terminated.

Use case ends.

---

Non-Functional Requirements

Performance

1. Should work on any mainstream OS as long as it has Java 17 or above installed.
2. Should be packaged from a single JAR file.
3. Should not take up more than 100MB in file size.
4. Should be able to hold up to 1000 contacts without a noticeable sluggishness in performance for typical usage.

Note: within 1 second for typical operations like listing, searching, adding, etc.

5. Users with above-average typing speed should be able to perform most tasks faster via commands than using a mouse.
6. Should work without requiring an installer.
7. Should work well for standard screen resolutions and be usable for resolutions 1280x720, screen scales 150%.

Note: Standard screen resolutions - 1920x1080 and higher, screen scales 100% and 125%.

Usability

1. The system should provide clear, informative error messages to guide user for invalid inputs.
2. Commands and outputs should follow a consistent format to minimize confusion.
3. The data should be stored locally and be in a human editable text file.

Reliability

1. Data should not be lost in case of sudden termination.
2. The system should handle invalid inputs without crashing or corrupting.

Glossary

• Mainstream OS: Windows, Linux, Unix, MacOS

---

Appendix: Instructions for manual testing

Given below are instructions to test the app manually.

Launch and shutdown

1. Initial launch

   1. Download the jar file estatemate.jar and copy into an empty folder

   2. cd to the folder with the jar file and running the command java -jar estatemate.jar to launch the app
      Expected: Shows the GUI with a set of sample contacts. The window size may not be optimal.

2. Saving window preferences

   1. Resize the window to an optimum size. Move the window to a different location. Close the window.

   2. Re-launch the app by double-clicking the jar file.
      Expected: The most recent window size and location is retained.

3. Proper shutdown

   1. Open the help window by entering help into the command box or using the button at the top left,

   2. Close the main application window.
      Expected: Both the help window and the main window should close.

Deleting a tenant

1. Deleting a tenant while all tenants are being shown

   1. Prerequisites: List all tenants using the list command. Multiple tenants in the list.

   2. Test case: delete 1
      Expected: First tenant is deleted from the list. Details of the deleted tenant shown in the status message.

   3. Test case: delete 0
      Expected: No person is deleted. Error details shown in the status message. Tenant list remains the same.

   4. Other incorrect delete commands to try: delete, delete x, ... (where x is larger than the list size)
      Expected: Similar to previous.

Adding a job

1. Adding a new job

   1. Prerequisites: No specific prerequisites.

   2. Test case: job d/ Pest infestation
      Expected: Job is added to the job list. Details of the job are shown in the status message. Switch to a job list screen where the added job can be seen

Finding tenants

1. Finding tenants by name

   1. Prerequisites: At least one tenant with name containing the word Alex, and no tenant with name containing the word Michael.

   2. Test case: find alex
      Expected: Only tenants with names containing the word Alex (non-case sensitive) are displayed.

   3. Test case: find michael
      Expected: An empty tenant list is displayed.

Finding jobs

1. Finding jobs by description

   1. Prerequisites: At least one job with name containing the word pest, and no job with name containing the word pipe.

   2. Test case: fjob pest
      Expected: Only jobs with descriptions containing the word pest (non-case sensitive) are displayed.

   3. Test case: fjob pipe
      Expected: An empty job list is displayed.

Linking jobs to a tenant

1. Linking an existing tenant and job to each other

   1. Prerequisites: List all tenants using the list command. At least one tenant in the list. List all jobs using the ljob command. At least one job (job id: 1) in the list.

   2. Test case: link 1 j/1 Expected: Job is linked to the tenant. Status message shows the job number and name of tenant linked. Job is displayed in the tenant's maintenance information section.

2. Linking a nonexistent tenant and a job to each other.

   1. Prerequisites: List all tenants using the list command. At most 4 tenants in the list. List all jobs using the ljob command. At least one job (job id: 1) in the list.

   2. Test case: link 5 j/1 Expected: Job is not linked to the tenant. Error details shown in status message indicating invalid tenant index.

3. Linking a tenant and a nonexisting job to each other.

   1. Prerequisites: List all tenants using the list command. at least 1 tenant in the list. List all jobs using the ljob command. At most 3 (max job id: 3) in the list.

   2. Test case: link 1 j/4 Expected: Job is not linked to the tenant. Error details showing in status message indicating invalid job index.

Appendix: Planned Enhancements

Team Size: 5

1. Implement split screen display. (Allow both job lists and tenant lists to be displayed at the same time)
2. Allow tenant names to support special/non-ASCII characters. (Not just alphanumeric characters and spaces)
   • Allow for valid names like Anne-marie, O'Brien, José .
3. Improve tenant duplicate detection to include consideration for phone numbers.
   • Allows same name, as long as the phone number is different.
4. help command to show a quick, brief reference to available commands without the need to access external links.
5. Enhance find command to no longer require full words to match.
   • e.g. find Ale will display the tenant Alex Yeoh.
6. Enhance fjob command to no longer require full words to match.
   • e.g. fjob leak will display the job with description Pipe leakage.
7. Add a command to unlink a job from a tenant. (Reverse of existing link command)
8. Perform more refined parsing validation for the tenant command, specifically involving the a/ tag.
   • Currently, an address field of a/ a/ is not accepted, while one of a/a/ is accepted.
9. Perform more rigorous validation of special character positions in phone numbers in the tenant command
   • e.g. Phone numbers like 999(())9999 or 99-----9 should be rejected.
10. Add an extra layer of user verification to the clear command.
    • e.g. Require user to input 'Y' in response to a verification question before clearing the data.

Appendix: Effort

The effort required and difficulty level was high, as we generally did not reuse any code (except for 1 method adapted from StackOverflow).
While AB3 deals with only one entity type (Persons), EstateMate needs to handle two (Tenants and Jobs). The tenant class is also much more detailed with more fields compared to the Person class from AB3.

Project Achievements

1. Adding jobs and their related functionality
   Challenges:
   1. Finding a way to implement the storage for job data without interfering with the existing data storage for tenants.
   2. Switching to non-index based commands for jobs as having both index based commands for tenants and jobs could cause issues.
   3. Creating a whole new GUI section and components for displaying of jobs separately from tenants.

2. Adding additional fields to the existing add command to allow for adding tenants
   Challenges:
   1. Performing date parsing and verification, as Tenant has fields requiring dates while Person from AB3 does not. There are many edge cases to consider and thus this aspect is error-prone.
   2. Adding job-related methods and fields to the model for tenants while maintaining high cohesion simultaneously.

3. Adding a new GUI screen to accommodate the addition of jobs
   Challenges:
   1. Starting from scratch as AB3 only has one screen to manage, while we have two.
   2. Managing the switching between screens based on commands, which we also needed to implement from scratch.
